The class to visualize analog joystick swing on a widget. More...

#include <joystick.hh>

Inheritance diagram for Joystick:

Collaboration diagram for Joystick:

Public Slots
void	setX (const float &value)
	Set the value of the x coordinate. More...

void	setY (const float &value)
	Set the value of the y coordinate. More...

void	addXAnimation ()
	Add an animation for the joystick to return to the x-axis zero position. More...

void	addYAnimation ()
	Add an animation for the joystick to return to the y-axis zero position. More...

void	removeXAnimation ()
	Remove an animation for the joystick to return to the x-axis zero position. More...

void	removeYAnimation ()
	Remove an animation for the joystick to return to the y-axis zero position. More...

void	setAlignment (Qt::Alignment align)
	Set the widget alignment. More...

void	movePos (const QPoint &coordinates)
	Change the knop coordinates. More...

Signals
void	xChange (float value)
	Signal emitted when the x coordinate value changed. More...

void	yChange (float value)
	Signal emitted when the y coordinate value changed. More...

Public Member Functions
	Joystick (QWidget *parent=nullptr)
	Construct a new Joystick object. More...

float	x () const
	Get a coordinate value on the x axis. More...

float	y () const
	Get a coordinate value on the y axis. More...

	~Joystick ()=default
	Destroy the Joystick object. More...

Properties
float	x

float	y

Private Member Functions
float	checkValue (const float &value, const float &min, const float &max) const
	Check if the coordinate value is in proper range. More...

void	resizeEvent (QResizeEvent *event) override
	Event handler to change size of widget. More...

virtual void	paintEvent (QPaintEvent *event) override
	Draw an analog joystick with its' background. More...

Private Attributes
const float	_midPoint = 2048.0
	Middle value of the raw analog joystick coordinates. More...

float	_x
	Value of the the x coordinate. More...

float	_y
	Value of the the y coordinate. More...

QRectF	_bounds
	Background bounds. More...

QRectF	_knopBounds
	Knop bounds. More...

QParallelAnimationGroup *	_animation
	Animation group for two axis. More...

QPropertyAnimation *	_xAnimation
	Animation on the the x axis. More...

QPropertyAnimation *	_yAnimation
	Animation on the the y axis. More...

Qt::Alignment	_alignment
	Widget alignment. More...

Detailed Description

Definition at line 25 of file joystick.hh.

Constructor & Destructor Documentation

◆ Joystick()

Joystick::Joystick ( QWidget * parent = nullptr )

explicit

Parameters

[in,out] parent Pointer to the parent QWidget object.

Definition at line 24 of file joystick.cpp.

◆ ~Joystick()

Joystick::~Joystick ( )

default

Member Function Documentation

◆ addXAnimation

void Joystick::addXAnimation ( )

slot

Definition at line 63 of file joystick.cpp.

◆ addYAnimation

void Joystick::addYAnimation ( )

slot

Definition at line 69 of file joystick.cpp.

◆ checkValue()

float Joystick::checkValue	(	const float &	value,
		const float &	min,
		const float &	max
	)		const

private

Parameters

[in]	value	Value to be check.
[in]	min	Minimal value.
[in]	max	Maximal value.

Return values

min	value is below range.
max	value is above range.
value	value is in proper range.

Definition at line 126 of file joystick.cpp.

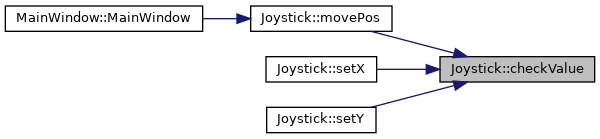

Here is the caller graph for this function:

◆ movePos

void Joystick::movePos ( const QPoint & coordinates )

slot

Calculate coordinates which will be used to draw the knob from raw coordinates passed as parameter. Emit signal when coordinates change.

Parameters

[in] coordinates Point with the coordinates read from the serial port.

Definition at line 94 of file joystick.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ paintEvent()

void Joystick::paintEvent ( QPaintEvent * event )

overrideprivatevirtual

Parameters

[in] event Paint event [not used].

Definition at line 173 of file joystick.cpp.

◆ removeXAnimation

void Joystick::removeXAnimation ( )

slot

Definition at line 75 of file joystick.cpp.

◆ removeYAnimation

void Joystick::removeYAnimation ( )

slot

Definition at line 82 of file joystick.cpp.

◆ resizeEvent()

void Joystick::resizeEvent ( QResizeEvent * event )

overrideprivate

Change the widget geometry to properly display visualization.

Parameters

[in] event Resize event [not used].

Definition at line 131 of file joystick.cpp.

◆ setAlignment

void Joystick::setAlignment ( Qt::Alignment align )

slot

Alignment is used in the resizeEvent to properly calculate the widget dimensions.

Parameters

[in] align Alignment type.

Definition at line 89 of file joystick.cpp.

◆ setX

void Joystick::setX ( const float & value )

slot

Parameters

[in] value Value of the x coordinate in range from -1.f to 1.f.

Definition at line 41 of file joystick.cpp.

Here is the call graph for this function:

◆ setY

void Joystick::setY ( const float & value )

slot

Parameters

[in] value Value of the y coordinate in range from -1.f to 1.f.

Definition at line 52 of file joystick.cpp.

Here is the call graph for this function:

◆ x()

float Joystick::x ( ) const

inline

Returns: Value of the x coordinate.

Definition at line 42 of file joystick.hh.

◆ xChange

void Joystick::xChange ( float value )

signal

Parameters

[in] value Value of the x coordinate.

Here is the caller graph for this function:

◆ y()

float Joystick::y ( ) const

inline

Returns: Value of the y coordinate.

Definition at line 48 of file joystick.hh.

◆ yChange

void Joystick::yChange ( float value )

signal

Parameters

[in] value Value of the y coordinate.

Here is the caller graph for this function:

Member Data Documentation

◆ _alignment

Qt::Alignment Joystick::_alignment

private

Definition at line 155 of file joystick.hh.

◆ _animation

QParallelAnimationGroup* Joystick::_animation

private

Definition at line 152 of file joystick.hh.

◆ _bounds

QRectF Joystick::_bounds

private

Definition at line 150 of file joystick.hh.

◆ _knopBounds

QRectF Joystick::_knopBounds

private

Definition at line 151 of file joystick.hh.

◆ _midPoint

const float Joystick::_midPoint = 2048.0

private

Definition at line 147 of file joystick.hh.

◆ _x

float Joystick::_x

private

Definition at line 148 of file joystick.hh.

◆ _xAnimation

QPropertyAnimation* Joystick::_xAnimation

private

Definition at line 153 of file joystick.hh.

◆ _y

float Joystick::_y

private

Definition at line 149 of file joystick.hh.

◆ _yAnimation

QPropertyAnimation* Joystick::_yAnimation

private

Definition at line 154 of file joystick.hh.

Property Documentation

◆ x

float Joystick::x

readwrite

Definition at line 1 of file joystick.hh.

◆ y

float Joystick::y

readwrite

Definition at line 1 of file joystick.hh.
